Hydraulic & Pneumatic Cylinder Overhaul, Repair & Retrofit

Extending equipment life. Restoring performance. Reducing downtime.
Raycom Engineering provides specialist overhaul, repair and retrofit services for hydraulic and pneumatic cylinders, from inspection and strip-down through to machining, refurbishment, testing and return to service.

Keep Your Equipment Moving

Expert Cylinder Overhaul & Refurbishment

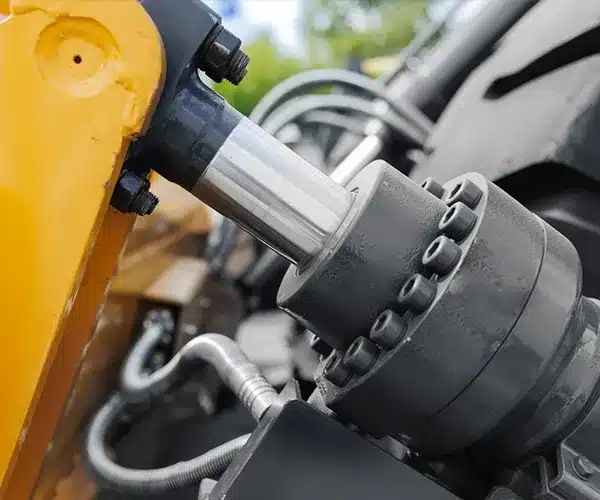

Hydraulic and pneumatic cylinders operate in some of the most demanding industrial environments. Wear, corrosion, seal failure, damaged rods and loss of pressure can quickly affect equipment performance and lead to costly downtime.

Our Power Transmissions division provides a complete cylinder overhaul service designed to restore components to reliable working condition wherever practical, helping customers avoid unnecessary replacement costs and extend equipment service life.

  • Hydraulic cylinder overhaul
  • Pneumatic cylinder overhaul
  • Cylinder inspection and assessment
  • Complete strip-down and cleaning
  • Rod and barrel inspection
  • Rod repair and re-chroming coordination
  • Seal and bearing replacement
  • Honing and precision machining
  • Thread and end-fitting repairs
  • Corrosion repair
  • Component replacement
  • Pressure and function testing
  • Reassembly and final inspection

Retrofit & Upgrades

Modernise Existing Equipment
Where an existing cylinder is no longer performing as required, a complete replacement is not always necessary. Our engineers can assess the existing design and identify opportunities to retrofit, modify or upgrade the cylinder to suit new operating requirements.

01

Performance Upgrades

Improving cylinder performance, operating pressure or reliability.

02

Dimensional Modifications

Modifying mounting arrangements, ports, threads, rods or other components.

03

Seal Upgrades

Replacing obsolete or unsuitable sealing systems with modern alternatives.

04

Material Improvements

Selecting improved materials or surface treatments for demanding environments.

05

Design Modifications

Engineering modifications to accommodate changes in machinery or operating conditions.

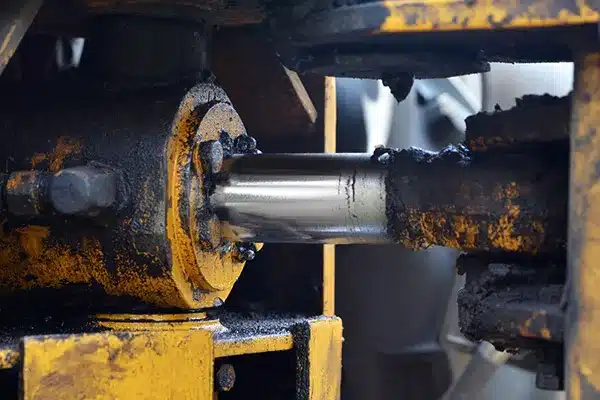

Retrofit Seal Upgrades

Improve Reliability. Reduce Leakage. Extend Service Life.
Older hydraulic and pneumatic cylinders are often fitted with sealing systems that are no longer ideally suited to modern operating pressures, temperatures, fluids or working environments. As part of our overhaul and retrofit service, Raycom Engineering can assess existing sealing arrangements and recommend modern seal technology designed around the actual operating conditions of the equipment.
  • Replacement of obsolete or discontinued seals
  • Upgrading to modern high-performance sealing systems
  • Rod seal and wiper upgrades
  • Piston and wear-ring upgrades
  • Static and dynamic seal replacement
  • Seal material upgrades for temperature and chemical resistance
  • Improved sealing arrangements for higher operating pressures
  • Conversion of older seal profiles to modern equivalents
  • Custom seal sourcing for difficult or obsolete applications
  • Inspection of seal grooves and mating surfaces
  • Recommendations to address recurring leakage or premature seal failure

Upgrade the Seal - Not the Whole Cylinder

Where the cylinder body and major components remain serviceable, a seal retrofit can provide a cost-effective alternative to complete cylinder replacement. Our engineers can assess the existing cylinder, identify the cause of seal failure and recommend an upgraded sealing solution designed to improve reliability, service life and performance.

Our Overhaul Process

INSPECT

Detailed visual and dimensional inspection.

STRIP & CLEAN

Complete disassembly and component cleaning.

REPAIR & REFURBISH

Machining, honing, rod repair, seal replacement and component refurbishment.

REASSEMBLE

Professional assembly using new seals and replacement components where required.

TEST & CERTIFY

Pressure and functional testing before the cylinder is returned to service.

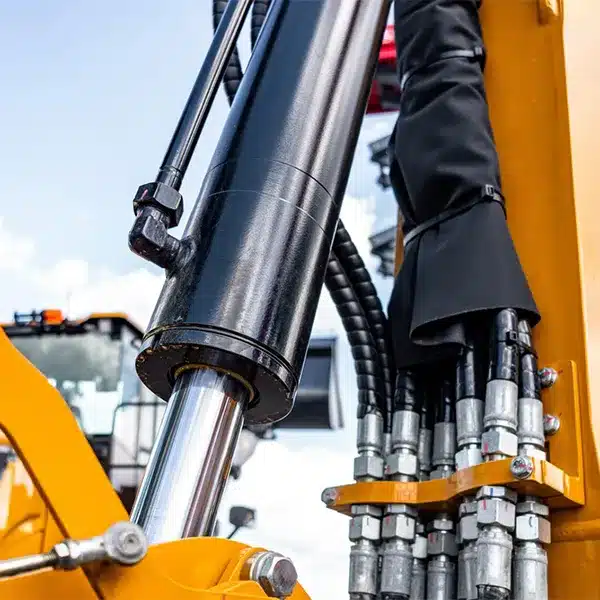

What We Can Work On

Hydraulic Cylinders:
Heavy-duty cylinders used across industrial and mobile equipment.
Pneumatic Cylinders:
Repair and refurbishment of pneumatic actuators and associated components.
Custom & Bespoke Cylinders:
Assessment and refurbishment of specialist or non-standard cylinders.
Multi-Stage Cylinders:
Inspection, overhaul and refurbishment of telescopic and multi-stage designs.
Heavy-Duty Industrial Cylinders:
Cylinders used in demanding applications where reliability and uptime are critical.

What We Can Work On

More Than Just a Repair
Our cylinder overhaul service is supported by Raycom Engineering’s wider engineering and fabrication capabilities. This allows us to investigate the root cause of failure and undertake associated machining, fabrication and component repair work where required.

Precision Machining: Repair and manufacture of critical components.

Fabrication: Modification and manufacture of brackets, mounts and associated components.

Engineering Inspection: Dimensional and visual assessment of worn components.

Testing: Functional and pressure testing following overhaul.

Sourcing: Replacement seals, bearings, rods and specialist components

Why Choose Raycom Engineering?

  • Reduce equipment downtime
  • Extend cylinder service life
  • Avoid unnecessary replacement costs
  • One engineering partner from inspection to testing
  • Bespoke repair and retrofit capability
  • Industrial workshop environment
  • Engineering-led approach
  • Fast response for critical equipment

Don't Replace It.
Refurbish It.

Have a damaged, leaking or under-performing hydraulic or pneumatic cylinder? Send us the details and our engineering team can assess the cylinder and recommend the most cost-effective solution.
Start a Conversation
Send us photographs, dimensions, drawings or simply tell us what has failed.
